ASME B16.11 Forged Threaded / Screwed Pipe Nipple
ASTM/ ASME A 105, ASTM/ ASME A 350 LF 2, ASTM / ASME A 53 GR. A & B, ASTM A 106 GR. A, B & C. API 5L GR. B,
API 5L X 42, X 46, X 52, X 60, X 65 & X 70. ASTM / ASME A 691 GR A, B & C
1/8″ NB TO 4″ NB

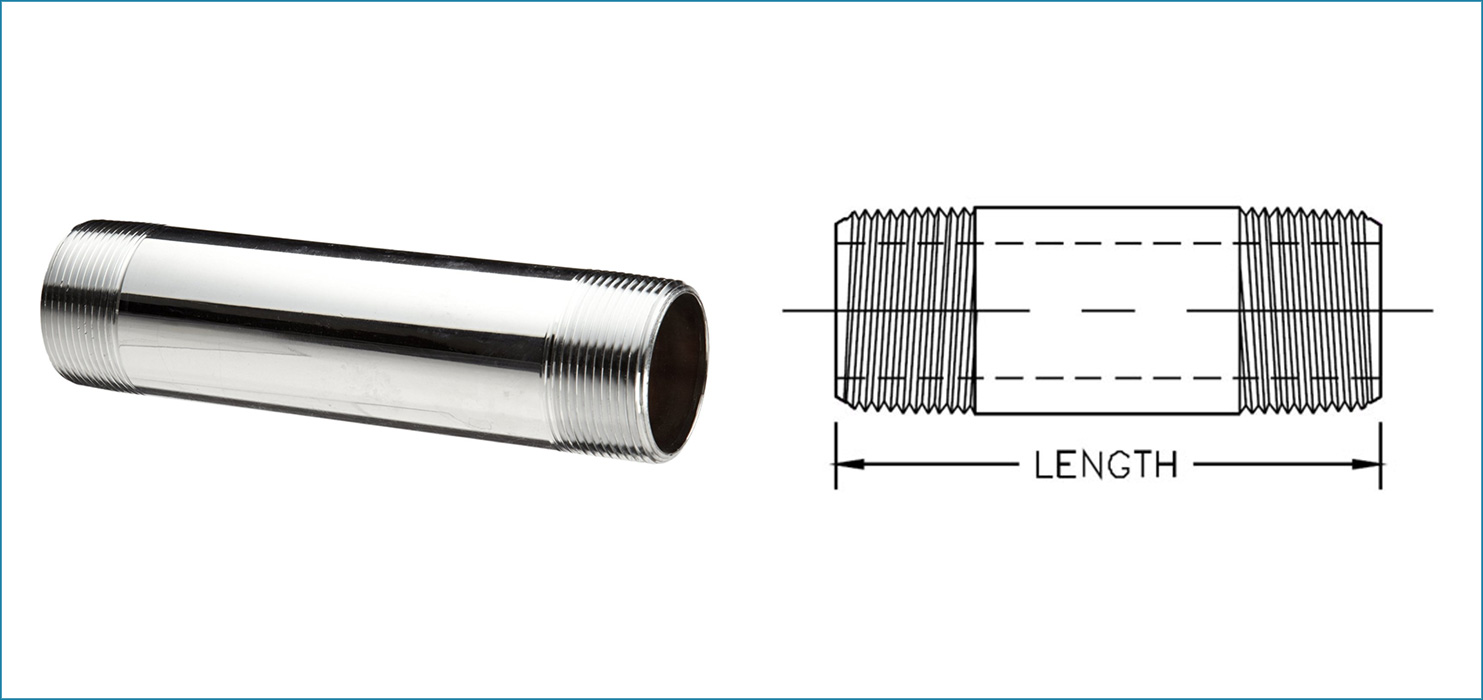

Threaded / Screwed Pipe Nipple Fittings are made available in different sizes by HGFF Group Co.,Ltd. as per the requirements of the customers. This company is a leading distributor, supplier and exporter of these high-quality fittings. Threaded / Screwed Pipe Nipples are also referred to by another term, that is, Barrel Nipples. This fitting is known to be a short stub of the pipe which has two male ends. Stainless Steel Threaded Pipe Nipples are commonly used for
plumbing and houses. ANSI B16.11 Forged Screwed Pipe Nipples are often used in funnels and pipes. These Threaded Pipe Nipples are
available in different shapes, sizes, specification and thickness according to the customers’ requirements.These fittings are used in
various application industries like oil refineries, chemical processing, petrochemical, cement industry, etc. HGFF Group Co., Ltd. offers a wide assortment of these fittings. This company is a supplier of both, large and small quantity of Threaded / Screwed Pipe Nipples
Dimensions : ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799
Size : 1/2″NB TO 4″NB IN
Class : 3000 LBS, 6000 LBS, 9000 LBS
Type : Threaded (S/W) & SCREWED (SCRD) – NPT, BSP, BSPT
Form : Threaded Pipe Nipple
| ASME: | ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799 |
| DIN: | DIN2605, DIN2615, DIN2616, DIN2617, DIN28011 |
| EN: | EN10253-1, EN10253-2 |
ASME B16.11 Stainless Steel Forged Threaded Pipe Nipple :
ASTM A182 F304, F304L, F306, F316L, F304H, F309S, F309H, F310S, F310H, F316TI, F316H, F316LN, F317, F317L, F321, F321H, F11, F22, F91, F347, F347H, F904L, ASTM A312/A403 TP304, TP304L, TP316, TP316L
Duplex & Super Duplex Steel ASME B16.11 Forged Threaded Pipe Nipple :
ASTM A 182 – F 51, F53, F55 S 31803, S 32205, S 32550, S 32750, S 32760, S 32950.
Carbon Steel ASME B16.11 Forged Threaded Pipe Nipple:
ASTM/ ASME A 105, ASTM/ ASME A 350 LF 2, ASTM / ASME A 53 GR. A & B, ASTM A 106 GR. A, B & C. API 5L GR. B, API 5L X 42, X 46, X 52, X 60, X 65 & X 70. ASTM / ASME A 691 GR A, B & C
ASME B16.11 Alloy Steel Forged Threaded Pipe Nipple:
ASTM / ASME A 182, ASTM / ASME A 335, ASTM / ASME A 234 GR P 1, P 5, P 9, P 11, P 12, P 22, P 23, P 91, ASTM / ASME A 691 GR 1 CR, 1 1/4 CR, 2 1/4 CR, 5 CR, 9CR, 91
ASME B16.11 Copper Alloy Steel Forged Threaded Pipe Nipple: ASTM / ASME SB 111 UNS NO. C 10100 , C 10200 , C 10300 , C 10800 , C 12000, C 12200, C 70600 C 71500, ASTM / ASME SB 466 UNS NO. C 70600 ( CU -NI- 90/10) , C 71500 ( CU -NI- 70/30)
Nickel Alloy Forged Threaded ASME B16.11 Pipe Nipple:
ASTM / ASME SB 336, ASTM / ASME SB 564 / 160 / 163 / 472, UNS 2200 (NICKEL 200) , UNS 2201 (NICKEL 201 ) , UNS 4400 (MONEL 400 ) , UNS 8020 ( ALLOY 20 / 20 CB 3 ) , UNS 8825 INCONEL (825) , UNS 6600 (INCONEL 600 ) , UNS 6601 (INCONEL 601) , UNS 6625 (INCONEL 625) , UNS 10276 (HASTELLOY C 276)

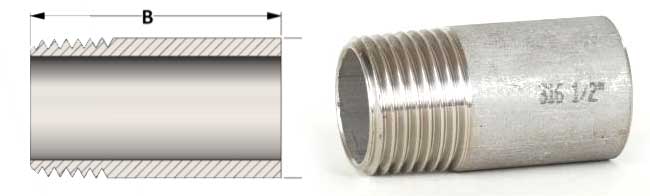

| Pipe Size | A | B | |||||||||||
| Close | Short | Standard Lengths | |||||||||||
| 1/8 | 0.405 | 0.75 | 1.5 | 2 | 2.5 | 3 | 3.5 | 4 | 4.5 | 5 | 5.5 | 6 | |
| 1/4 | 0.54 | 0.875 | 1.5 | 2 | 2.5 | 3 | 3.5 | 4 | 4.5 | 5 | 5.5 | 6 | |
| 3/8 | 0.675 | 1 | 1.5 | 2 | 2.5 | 3 | 3.5 | 4 | 4.5 | 5 | 5.5 | 6 | |
| 1/2 | 0.84 | 1.125 | 1.5 | 2 | 2.5 | 3 | 3.5 | 4 | 4.5 | 5 | 5.5 | 6 | |
| 3/4 | 1.05 | 1.375 | 1.5 | 2 | 2.5 | 3 | 3.5 | 4 | 4.5 | 5 | 5.5 | 6 | |
| 1 | 1.315 | 1.5 | 2 | — | 2.5 | 3 | 3.5 | 4 | 4.5 | 5 | 5.5 | 6 | |
| 1 ‘1/4 | 1.66 | 1.625 | 2 | — | 2.5 | 3 | 3.5 | 4 | 4.5 | 5 | 5.5 | 6 | |
| 1 1/2 | 1.9 | 1.75 | 2 | — | 2.5 | 3 | 3.5 | 4 | 4.5 | 5 | 5.5 | 6 | |
| 2 | 2.375 | 2 | 2.5 | — | — | 3 | 3.5 | 4 | 4.5 | 5 | 5.5 | 6 | |
| 2 1/2 | 2.875 | 2.5 | 3 | — | — | — | — | 4 | 4.5 | 5 | 5.5 | 6 | |
| 3 | 3.5 | 2.625 | 3 | — | — | — | — | 4 | 4.5 | 5 | 5.5 | 6 | |
| 3 1/2 | 4 | 2.75 | 4 | — | — | — | — | — | 4.5 | 5 | 5.5 | 6 | |
| 4 | 4.5 | 2.875 | 4 | — | — | — | — | — | 4.5 | 5 | 5.5 | 6 | |
| 5 | 5.563 | 3 | 4.5 | — | — | — | — | — | — | 5 | 5.5 | 6 | |
| 6 | 6.625 | 3.125 | 4.5 | — | — | — | — | — | — | 5 | 5.5 | 6 | |
Forged Threaded / Screwed Pipe Nipple Application
ASME B16.11 Threaded Pipe Nipple are known to deliver exceptional performance and are generally developed
for meeting the demands. We oer a broad range of Forged Screwed Pipe Nipple through a worldwide network
of stock-keeping branches. These Forged Threaded Pipe Nipple is use in various industries like :
Stainless Steel Forged Threaded Pipe Nipple uses in Oil and Gas Pipeline
Forged Threaded Pipe Nipple uses in Chemical Industry
Alloy Steel Threaded Pipe Nipples uses in Plumbing
Forged Screwed Pipe Nipple uses in Heating
Threaded Forged Pipe Nipple uses in Water Supply Systems
ANSI B16.11 Forged Threaded Pipe Nipple uses in Power Plant
Threaded Pipe Nipple uses in Paper & Pulp Industry
Forged Screwed Pipe Nipples uses in General Purpose Applications
Forged Threaded Pipe Nipple uses in Fabrication Industry
Forged Screwed Pipe Nipple uses in Food Processing Industry
Forged Threaded Pipe Nipples uses in Structural Pipe
