Threaded / Screwed Street Elbow

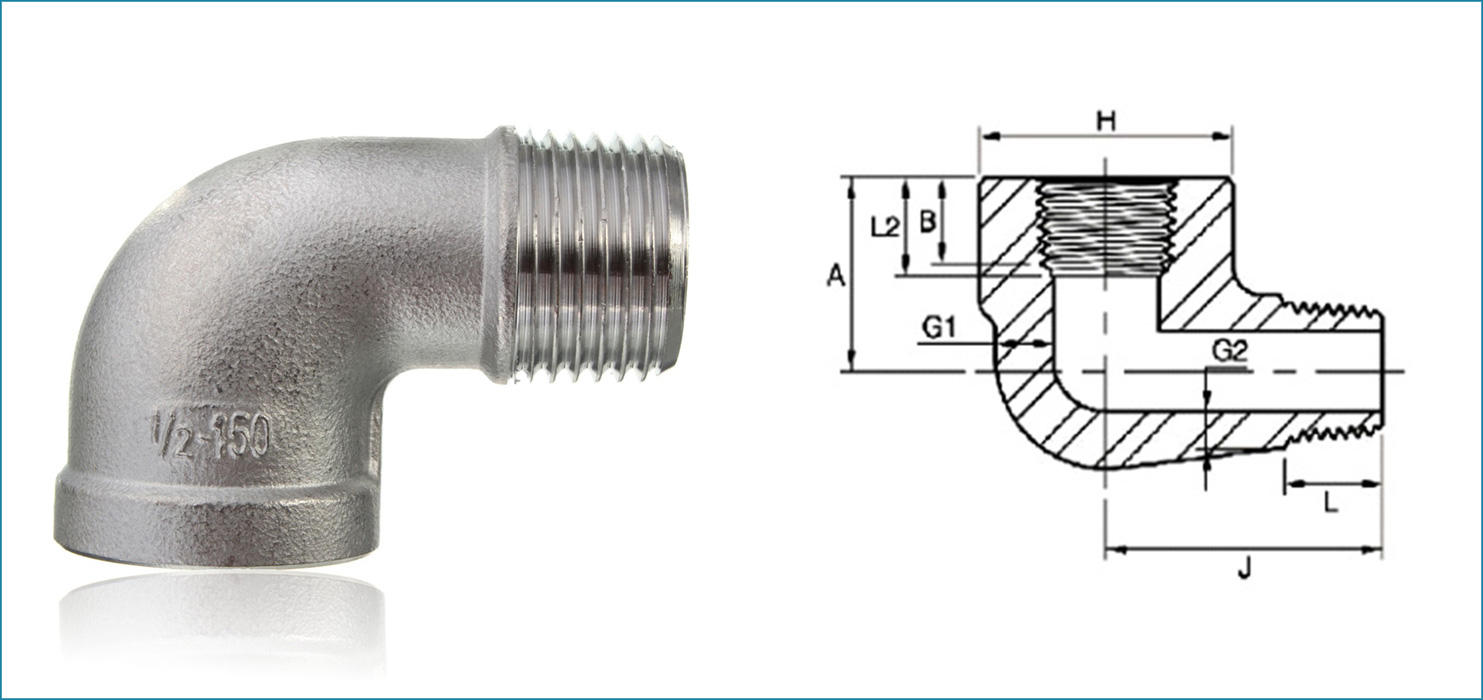

HGFF Group Co.,Ltd. is one of the biggest Manufactuer ,trader, distributor and stockist who offer a wide an assortment of Threaded / Screwed Street Elbow Fittings to its clientele at reasonable prices. Stainless Steel Screwed Street Elbow is a fitting that is installed between two lengths of a pipe or a tube, allowing a change in direction of the ow. It is a type of plumbing or pipe fitting intended to join a piece of pipe and another fitting at an angle. ANSI B16.11 Forged Threaded Street Elbow Fittings have a female fitting on one end and a male pipe
on the other end. They can be used in water supply, drainage, vents, etc. The consistency that HGFF Group Co.,Ltd. has maintained with regards to quality and responsive services offered by them to
the customers is what ensures client loyalty

Threaded Street Elbow Specification

Dimensions : ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799

Size : 1/2″NB TO 4″NB IN

Class : 3000 LBS, 6000 LBS, 9000 LBS

Type : Threaded (S/W) & SCREWED (SCRD) – NPT, BSP, BSPT

Form : Threaded Street Elbow

Dimensions Standard of Threaded Street Elbow

ASME B16.11 Threaded Street Elbow Material

ASME B16.11 Stainless Steel Forged Threaded Street Elbow :
ASTM A182 F304, F304L, F306, F316L, F304H, F309S, F309H, F310S, F310H, F316TI, F316H, F316LN, F317, F317L, F321, F321H, F11, F22, F91, F347, F347H, F904L, ASTM A312/A403 TP304, TP304L, TP316, TP316L

Duplex & Super Duplex Steel ASME B16.11 Forged Threaded Street Elbow :
ASTM A 182 – F 51, F53, F55 S 31803, S 32205, S 32550, S 32750, S 32760, S 32950.

Carbon Steel ASME B16.11 Forged Threaded Street Elbow:
ASTM/ ASME A 105, ASTM/ ASME A 350 LF 2, ASTM / ASME A 53 GR. A & B, ASTM A 106 GR. A, B & C. API 5L GR. B, API 5L X 42, X 46, X 52, X 60, X 65 & X 70. ASTM / ASME A 691 GR A, B & C

ASME B16.11 Alloy Steel Forged Threaded Street Elbow:
ASTM / ASME A 182, ASTM / ASME A 335, ASTM / ASME A 234 GR P 1, P 5, P 9, P 11, P 12, P 22, P 23, P 91, ASTM / ASME A 691 GR 1 CR, 1 1/4 CR, 2 1/4 CR, 5 CR, 9CR, 91

ASME B16.11 Copper Alloy Steel Forged Threaded Street Elbow: ASTM / ASME SB 111 UNS NO. C 10100 , C 10200 , C 10300 , C 10800 , C 12000, C 12200, C 70600 C 71500, ASTM / ASME SB 466 UNS NO. C 70600 ( CU -NI- 90/10) , C 71500 ( CU -NI- 70/30)

Nickel Alloy Forged Threaded ASME B16.11 Street Elbow:
ASTM / ASME SB 336, ASTM / ASME SB 564 / 160 / 163 / 472, UNS 2200 (NICKEL 200) , UNS 2201 (NICKEL 201 ) , UNS 4400 (MONEL 400 ) , UNS 8020 ( ALLOY 20 / 20 CB 3 ) , UNS 8825 INCONEL (825) , UNS 6600 (INCONEL 600 ) , UNS 6601 (INCONEL 601) , UNS 6625 (INCONEL 625) , UNS 10276 (HASTELLOY C 276)

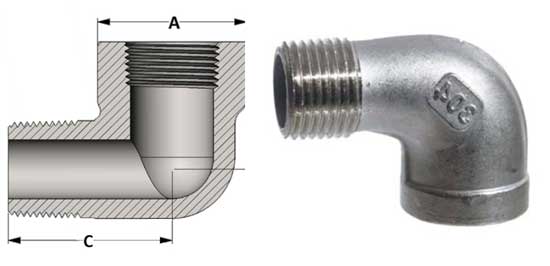

THREADED STREET ELBOW DIMENSIONS

ANSI/ASME B16.11 Threaded Street Elbow Dimensions

Forged Threaded / Screwed Street Elbow Application

ASME B16.11 Threaded Street Elbow are known to deliver exceptional performance and are generally developed
for meeting the demands. We offer a broad range of Forged Screwed Street Elbow through a worldwide network
of stock-keeping branches. This Forged Threaded Street Elbow is used in various industries like :
 Stainless Steel Forged Threaded Street Elbow uses in Oil and Gas Pipeline
 Forged Threaded Street Elbow uses in Chemical Industry
 Alloy Steel Threaded Street Elbows uses in Plumbing
 Forged Screwed Street Elbow uses in Heating
 Threaded Forged Street Elbow uses in Water Supply Systems
 ANSI B16.11 Forged Threaded Street Elbow uses in Power Plant
 Threaded Street Elbow uses in Paper & Pulp Industry
 Forged Screwed Street Elbows uses in General Purpose Applications
 Forged Threaded Street Elbow uses in Fabrication Industry
 Forged Screwed Street Elbow uses in Food Processing Industry
 Forged Threaded Street Elbows uses in Structural Pipe

ASME B16.11 Forged Threaded / Screwed Street Elbow Available Types
